DALT_Client::DALTClient Class Reference

Main class for simultation; The DALTClient class acts as a server, receiving all SOAP requests from the simulation serever. More...

#include <dalt_client.h>

Inheritance diagram for DALT_Client::DALTClient:

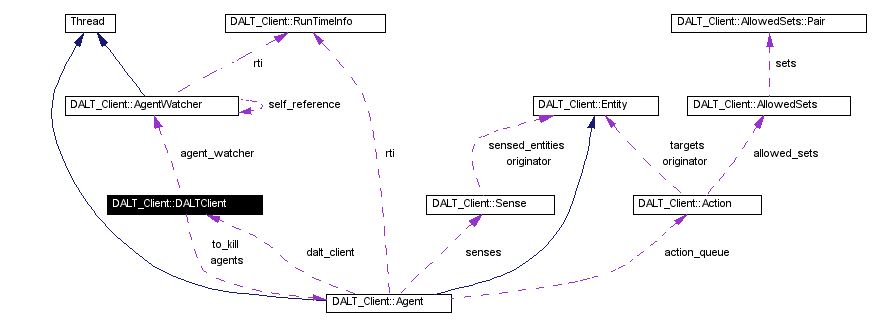

[legend]Collaboration diagram for DALT_Client::DALTClient:

[legend]List of all members.

Public Methods
	DALTClient (int port_no, string server)
	the constructor initialises the soap server service for the client and registers it with the server. More...
virtual	~DALTClient ()
virtual int	createAgent (string type, int id)=0
	this function gets called each time a createAgent message is received. More...
virtual void	killAgent (int id)
	kills the thread running the agent with a given id and removes the agent from the agents vector. More...
virtual void	soap_createAgent (const SOAPMethod &request, SOAPMethod &response)
	creates a new processing agent, given an ID and a type. More...
virtual void	soap_newCycleNotify (const SOAPMethod &request, SOAPMethod &response)
	notify all the agents managed by this client of the start of a new cycle. More...
virtual void	soap_clientStatus (const SOAPMethod &request, SOAPMethod &response)
	returns performance information about this client (mainly the last cycle time and the average cycle time). More...
virtual void	soap_agentStats (const SOAPMethod &request, SOAPMethod &response)
	returns normalised average performance information about all agent types owned (the time the agent would take to compute on the reference machine). More...
virtual void	soap_actionRequest (const SOAPMethod &request, SOAPMethod &response)=0
	this method is called when an action is to be posted to an agent. More...
Public Attributes
SOAPProxy*	endpoint
	the server. More...
string	server_location
	location of the server. More...
AgentWatcher*	agent_watcher
	this class monitors the execution state of the agents managed by the client. More...
Protected Types
typedef void (DALTClient::*	HandlerFunction )(const SOAPMethod &request, SOAPMethod &response)
	type defined to enable the extended classes to handle soap requests. More...
Protected Attributes
float	machine_speed
	the indexed performance of th machine running on. More...
vector<Agent*>	agents
	vector containing all the agents. More...
string	location
	location of this soap server. More...
list<Agent*>	to_kill
	agents cannot kill themselves. More...

---

Detailed Description

Main class for simultation; The DALTClient class acts as a server, receiving all SOAP requests from the simulation serever.

It also acts as a container and manager for all the agents running on the same machine. The class knows how to process a series of messages (like the clientInformation) and knows how to forward messages such as action requests to the relevant agents for execution.

This class has to be extended for each particular implementation; each class extending DALTClient has to do the following:

• Implement the agent creation method - see createAgent
• register all the soap_* methods using calls like DispatchMethod("createAgent", name_space, &DerivedClass::soap_createAgent);

If you want to use clonable agents you will have to implement this yourself, by adding a new soap_cloneAgent method which should be able to receive all data needed to create a new agent.

Author:

Vlad Mereuta

Definition at line 55 of file dalt_client.h.

---

Member Typedef Documentation

typedef void(DALTClient::* DALT_Client::DALTClient::HandlerFunction)(const SOAPMethod &request, SOAPMethod &response) [protected]

type defined to enable the extended classes to handle soap requests.

---

Constructor & Destructor Documentation

DALT_Client::DALTClient::DALTClient ( int port_no, string server )

the constructor initialises the soap server service for the client and registers it with the server. Parameters: port_no   the number of the port at which the client is going to listen for SOAP requests server   a string containing the address at which the simulation server is located Parameters: port_no   server

DALT_Client::DALTClient::~DALTClient ( ) [virtual]

---

Member Function Documentation

int DALT_Client::DALTClient::createAgent ( string type, int id ) [pure virtual]

this function gets called each time a createAgent message is received. It has to be overloaded by each simulation Parameters: type   the type of the agent to be created id   the id of the agent to be created Returns: 0 for success , other int indicating the failure code Parameters: type   id   Reimplemented in CAClient.

void DALT_Client::DALTClient::killAgent ( int id ) [virtual]

kills the thread running the agent with a given id and removes the agent from the agents vector. Parameters: id

void DALT_Client::DALTClient::soap_actionRequest ( const SOAPMethod & request, SOAPMethod & response ) [pure virtual]

this method is called when an action is to be posted to an agent. The client handles the decoding and calling the executeAction method for the right agent Parameters: request   response   Reimplemented in CAClient.

void DALT_Client::DALTClient::soap_agentStats ( const SOAPMethod & request, SOAPMethod & response ) [virtual]

returns normalised average performance information about all agent types owned (the time the agent would take to compute on the reference machine). This information will be used by the server to aproximate time values for each type of agent. Parameters: request   response

void DALT_Client::DALTClient::soap_clientStatus ( const SOAPMethod & request, SOAPMethod & response ) [virtual]

returns performance information about this client (mainly the last cycle time and the average cycle time). Parameters: request   response

void DALT_Client::DALTClient::soap_createAgent ( const SOAPMethod & request, SOAPMethod & response ) [virtual]

creates a new processing agent, given an ID and a type. Parameters: request   response

void DALT_Client::DALTClient::soap_newCycleNotify ( const SOAPMethod & request, SOAPMethod & response ) [virtual]

notify all the agents managed by this client of the start of a new cycle. Parameters: request   response

---

Member Data Documentation

AgentWatcher * DALT_Client::DALTClient::agent_watcher

this class monitors the execution state of the agents managed by the client. Definition at line 77 of file dalt_client.h.

vector< Agent *> DALT_Client::DALTClient::agents [protected]

vector containing all the agents. Definition at line 64 of file dalt_client.h.

SOAPProxy * DALT_Client::DALTClient::endpoint

the server. Definition at line 72 of file dalt_client.h.

string DALT_Client::DALTClient::location [protected]

location of this soap server. Definition at line 66 of file dalt_client.h.

float DALT_Client::DALTClient::machine_speed [protected]

the indexed performance of th machine running on. Definition at line 62 of file dalt_client.h.

string DALT_Client::DALTClient::server_location

location of the server. Definition at line 74 of file dalt_client.h.

list< Agent *> DALT_Client::DALTClient::to_kill [protected]

agents cannot kill themselves. So they queue do be killed instead; Each newCycle soap request will trigger a cycle which empties this list, by waiting for all Agents to join Definition at line 69 of file dalt_client.h.

---

The documentation for this class was generated from the following file:

• dalt_client.h

---
